What is Color Theory and Why Do I Need to Know It?

What is Color Theory and Why Do I Need to Know It?

Our industries rely heavily on color, which most of us know as a wavelength of light that our eyes and brains perceive as ..well color. But we don’t always think about how or why this is happening. You can go a long way just knowing what looks nice, but if you want to optimize the potential of your finished product, knowing the physics involved is very beneficial.



Additive Color

You’re reading this on a screen, that screen operates using the principle of additive color theory. RGB - red, green, blue. I’m sure you’re familiar with this if you’ve ever uploaded a photo to the internet. Together, they create every shade in the achievable gamut of a display that uses light to create its image. In some art class you were likely introduced to a color wheel for paints (see subtractive color), and additive color works in the same way with secondary, tertiary, etc. colors. But instead of black, when all primary colors are added together you get white (think of a prism).
Additive Color Overlay GIF

Additive Color Overlay GIF

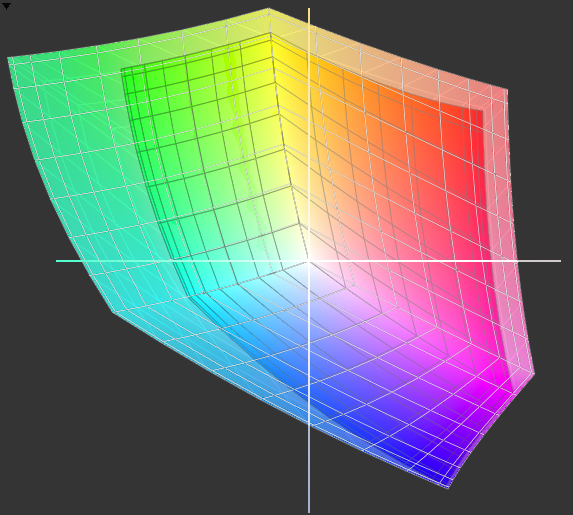

This is important because not all displays are created equally, within the total gamut of RGB achievable colors the most high end consumer displays (such as the Dell Ultrasharp UltraHD line) will achieve 99% of Adobe RGB (1.07B colors) and 100% of sRGB, which can be seen below with the more vibrant sRGB profile overlaying Adobe.


AdobeRGB sRGB comparison


While this is great for professionals who need the best looking results, many of your clients probably don’t care, and have displays between the $100 and $250 range, which normally have about 16.7 million colors, and won’t show them what you’re seeing on your display. Whenever possible, you should be proofing in person with a calibrated display that you trust. This isn’t as important if the final product will be in print, as the colors will be limited to the much smaller achievable gamut of the printer, anyway. My advice for digital proofing is to edit the image in sRGB, as most monitors can display that entire profile.

Subtractive Color


If additive color is the adding wavelengths of light to create new colors, subtractive refers to the process of removing wavelengths to create other colors. This is what’s happening when you add ink, paint, etc. to a physical display medium such as photo paper. Alternatively to additive color where white is the combination of all wavelengths, in subtractive theory, white is what you have without the introduction of any colors. Adding red ink acts as a filter which subtracts all but its own wavelength (the longest in the observable spectrum) from the white light, allowing the observer to see it by itself. I tried my best to demonstrate this in the image below.

Subtractive Color Wavelength Diagram

Subtractive Color Wavelength Diagram

When I first learned color theory I assumed that subtractive was just the exact opposite of additive, however this isn’t the case, and the achievable color gamut of subtractive is much more limited.

Just as additive is represented by the primary colors of RGB, subtractive, uses CMYK - Cyan, Magenta, Yellow, and Black (K). The reason black is included is because adding all of the colors created with CMY together makes a muddy brown, they don’t filter all wavelengths entirely (as a side note, it’s represented by K for ‘key’ which is the name for the black plate used in the printing process, and because blue already took B in RGB).

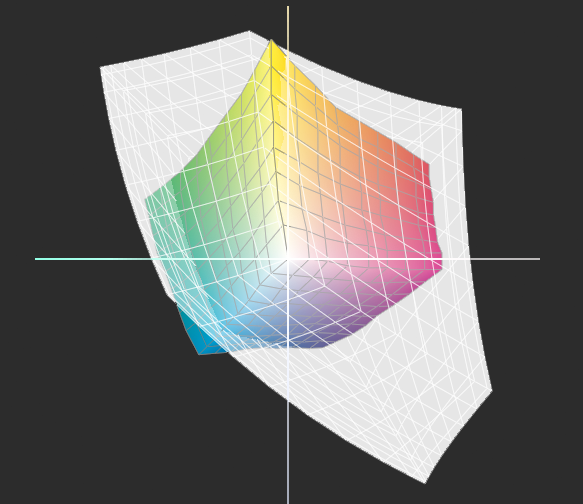

Compared to sRGB (the smaller RGB gamut seen in the additive section), this is standard CMYK:

CMYK sRGB comparison



This varies slightly based on your printer, inks, and paper/print surface. Some printer manufacturers have increased their achievable colors by adding different shades that can’t be created with normal combinations.

When printing any work, it’s a good idea to contact the print shop and ask for their printer profile, which is a custom profile for you to download and install into your editing software to ensure that all of the colors in your image can be created with the printer and paper you’re using. Most high volume print shops will have it already on their website, and some smaller high end specialty shops will require you to be a registered customer before they’ll give it to you.

Of course, none of this matters if your display isn’t calibrated, since you won’t be seeing colors properly anyway. To find out how to do this, check out Zach Sutton’s Ultimate Screen Calibration Guide from earlier this year.
