The firmware update version 1.8.1 offered Canon EOS R5 users the ability to capture a stunning 400-megapixel image. You may ask yourself if this has any real benefit over the standard 45-megapixel resolution, but it’s nice to have. How useful is the option in real life? Let’s find out.

Canon EOS R5’s firmware version 1.8.1 offered only a few minor updates. Except for one. It added the IBIS high-resolution shot to the menu. This new option makes it possible to capture a stunning 400-megapixel image simply by merging a series of nine separate images. It does so by changing the position of the sensor for each image with the IBIS system.

The idea of capturing a high-resolution image this way is nothing new. Sony incorporated this system in their Sony a7R V camera. The Panasonic cameras offer this option for quite some years now, and I’ve seen the high-resolution option on Olympus and Fujifilm cameras as well. I believe the EOS R5 is the first Canon camera that allows the capture of high-resolution images this way.

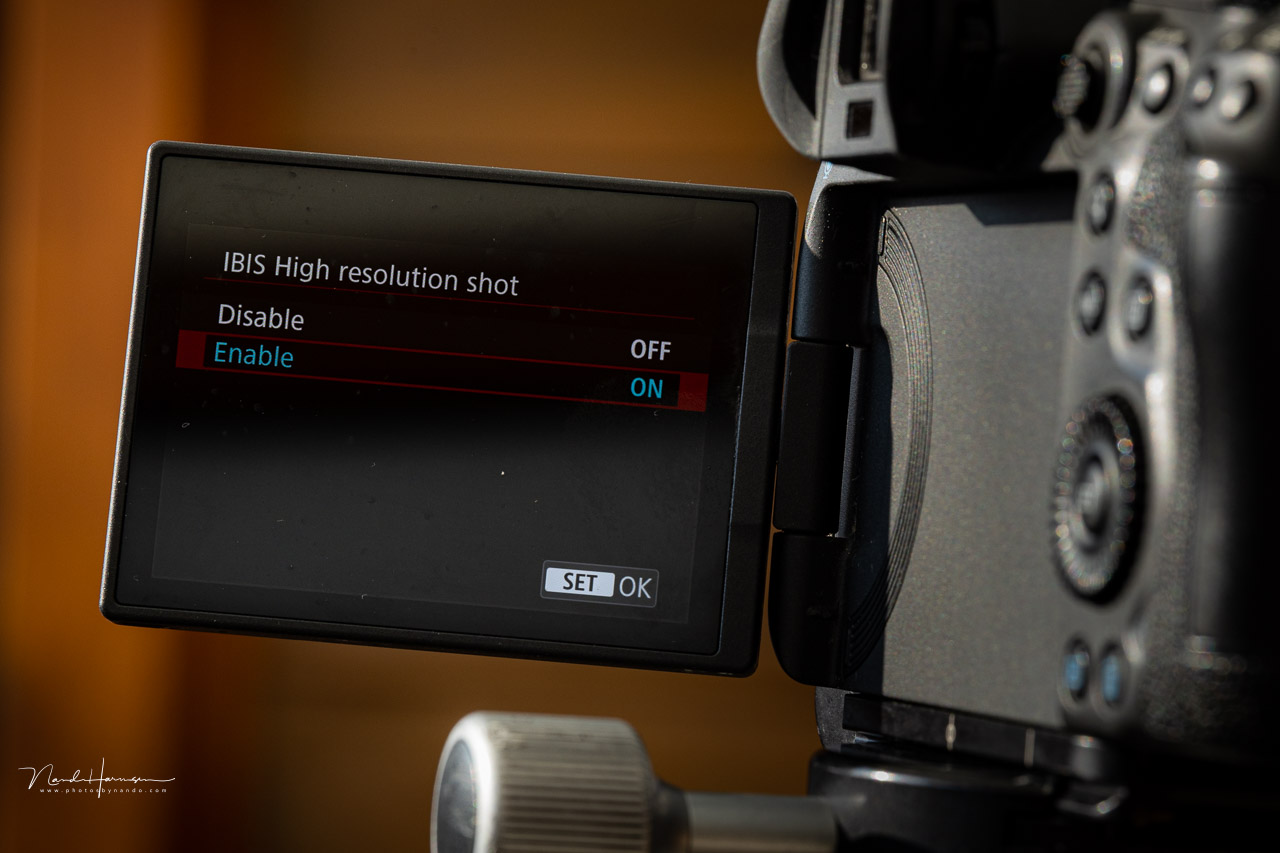

The IBIS high resolution shot mode activated on the Canon EOS R5

Things to Keep in Mind

There are some issues with this kind of high-resolution image. Since the camera will capture a series of sequential shots, the location of moving objects in the frame will vary between each individual shot. This will result in motion blur after the images are combined into one high-resolution version. On top of that, any movement of the camera during the capture of these shots will also result in motion blur.

When a subject is moving, it's movements will show in the end result of a stack. This is the result of the IBIS high resolution shot mode on the Canon EOS R5 with a moving subject.

The Canon IBIS High-Resolution Shot

I’ve installed the firmware update that offers the IBIS high-resolution shot and tried it several times. Activating the option switches the camera to the electronic shutter mode and single shot. It’s not clear if the camera will capture raw images or not, but the result of the IBIS high-resolution mode is a jpeg image.

When pressing the shutter, nine 45-megapixel images are taken and combined into one 400-megapixel image. This is almost ten times the native resolution, which is incredible. You don’t need any additional software to combine these images, it’s all done in-camera. The high-resolution option of Sony and Panasonic will increase the resolution four times, but Canon manages to double that one more time.

The increase in resolution is amazing. The 45 megapixel is shown in the inset.

It takes a few seconds before the end result is ready, and viewing the image on screen takes a couple of seconds to load as well. The file size is somewhere between 100 megabytes and 300 megabytes, depending on the number of details.

The first thing you’ll notice is the motion blur when the camera is handheld. Unfortunately, the camera won’t align the images automatically. In other words, without a proper tripod, this function is useless. I wanted to see how the IBIS high resolution would capture moving subjects as well, but this first test already gave a pretty good idea of how the result would be. As expected, any movement from both camera and subject results in motion blur.

The IBIS high resolution shot is nearly impossible to accomplish hand held. There is no alignment option available.

Despite being able to capture a stunning 400-megapixel image, the usability of this option turns out to be very limited. The only time it will work properly is with stationary objects. On top of that, you need a sturdy tripod. You are also limited to jpeg. Any high dynamic range scenery will be difficult to capture unless you try a manual exposure bracketing series with the high resolution activated.

This is a 100% crop of the 45 megapixel image from a Canon EOS R5

This is a 100% crop of the 400 megapixel IBIS high resolution image from a Canon EOS R5

When a 45 megapixel image is increased in resolution in Photoshop, this is the result. You can compare this one with the previous image.

Taking all of this into account, the IBIS high-resolution shot option of the Canon EOS R5 is not really useful at all. It lacks motion blur compensation and alignment of the separate images. It feels more like a novelty instead of a serious and useful option.

Looking at Other Brands

I haven’t tried the high resolution of the Sony a7R V. For this you need additional software since the camera itself only captures sequential shots. But the Sony software offers motion blur correction to some extent. This should make the high-resolution shot of the Sony a7R V more useful compared to the Canon EOS R5.

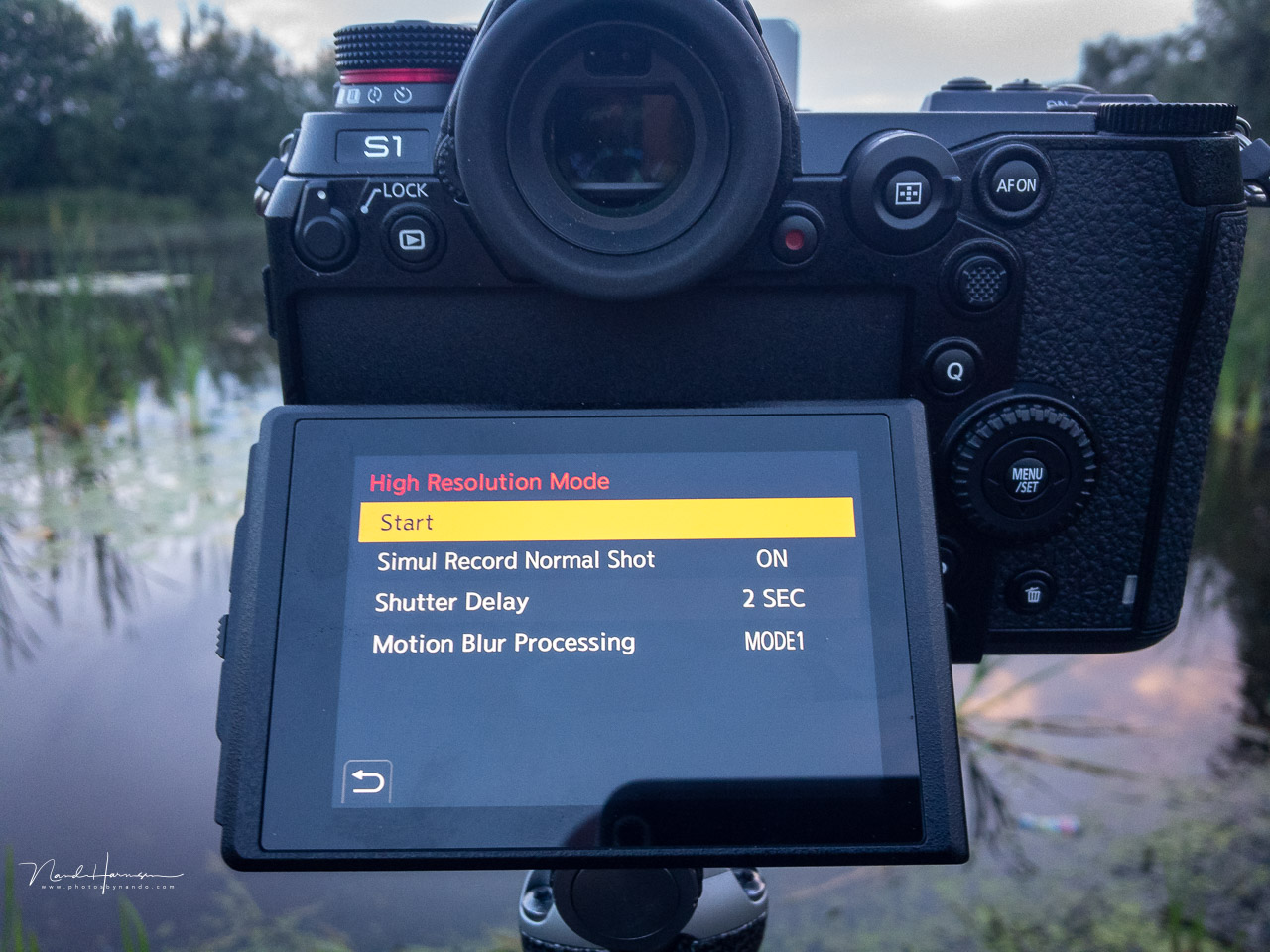

High resolution on the Panasonic Lumix DC-S1 offers alignment and motion blur compensation. It is limited to four times the native resolution, but it works much better and much more flexible compared to Canon.

I did use the high-resolution option on several occasions with Panasonic cameras like the Panasonic Lumix DC-S1. Just like Canon, this camera combines sequential images in-camera. But the end result is saved as a raw file instead. On top of that, Panasonic can compensate for motion blur. And it does an amazing job as well.

A test for the motion blur compensation of the Panasonic Lumix DC-S1. At the left the motion blur compensation is switched on, at the right it's switched off.

Do You Need High Resolution?

The high-resolution option that is built into modern cameras is a nice way of capturing the world in extreme detail. You may ask yourself if it is necessary to have that amount of resolution. A 45-megapixel sensor should be more than enough in most situations. So why would you need even more?

If a high resolution is needed, you’re probably better off with a panorama shot of the scenery. This allows for a bit of planning when capturing moving subjects. On top of that, it gives a lot of flexibility. This makes it possible to get much better results compared to the high-resolution options offered by most cameras, with Canon being the least usable one at this time.

Although Canon offers a much higher increase in resolution, it's quite limited in real world use. This example if from the Panasonic Lumix DC-S1, which works much better.

The downside of the high-resolution panorama is the amount of planning involved. But also the amount of work that is necessary before the end result is ready. A high-resolution system that is offered by shifting a sensor is much more convenient.

My Conclusion

I feel Canon didn't take the high-resolution option for the Canon EOS R5 too seriously. The firmware update should have addressed more useful options like an update for the autofocus and tracking ability; Face recognition, left or right eye preference, and perhaps some other minor changes. If Canon would have taken high resolution seriously, it should have offered additional settings like alignment and motion blur compensation instead of trying to get as much resolution as possible.

Have you used the Canon EOS R5 IBIS high-resolution function? Please share your experience in the comments below. If you’re a Sony or Olympus user, tell us about the usability of that system.
